Shakespeare general engineering castings

Shakespeare has supplied many cast products for the general engineering sector which range from machine tool beds, frames and baseplates to bespoke form tools, cylinder casings, split housings and frames. Some examples are shown below.

Steam Trains

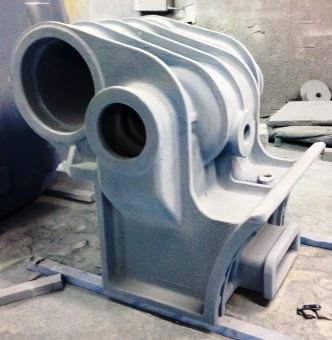

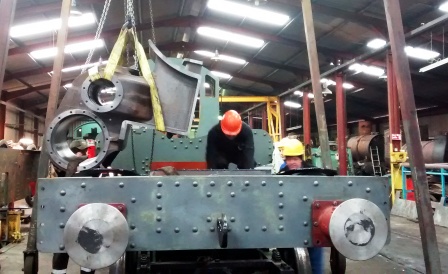

Shakespeare has supplied a number of high-integrity cylinder castings for a steam train restoration project in the UK. The cylinder castings were manufactured using poly patterns; an ideal cost effective process for low quantity, complex, precision castings. The 2 tonne machined cylinder castings, left hand and right hand, were installed to the train engine chassis as shown below.

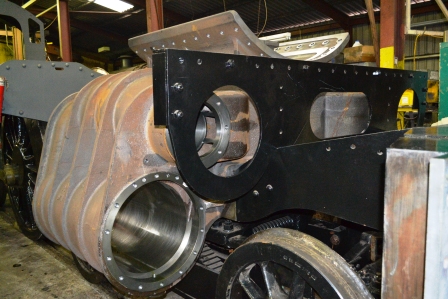

SF steam cylinder assy1

SF steam cylinder assy2

SF Steam Cylinder poly2

Impellers, Propellers & Fans

Impellers, propellers and fans are typically supplied by Shakespeare as clients seek to ensure joint integrity over welded variants, particularly at the high stress points between the hub shaft and blades. Shakespeare are able to supply castings in a wide range of materials in cast steel and iron to suit various industrial applications. Shakespeare has also supplied cast propeller housings for ships as shown.

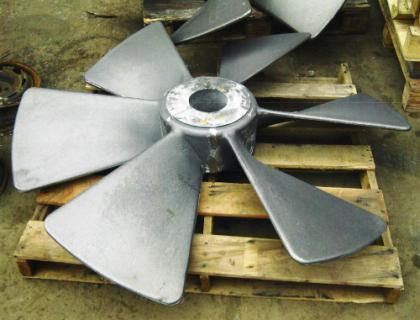

Shakespeare ship propeller housingShakespeare Small castings3

Shaft Hub Plates & Supports

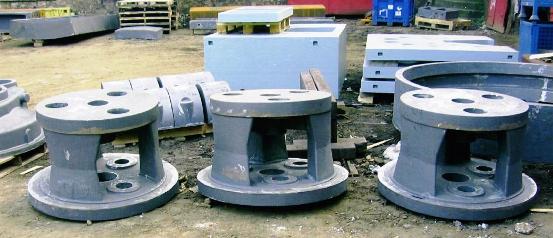

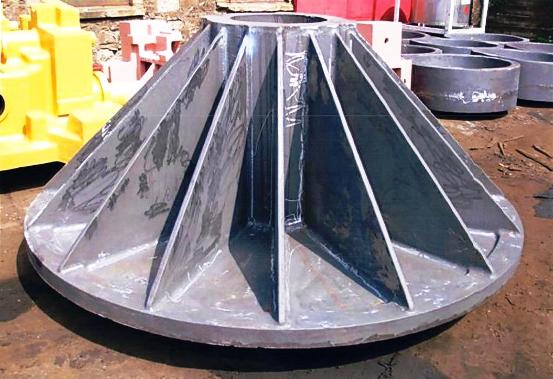

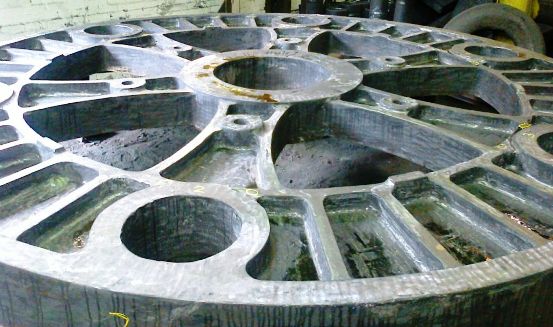

Shakespeare has supplied many cast items for rotating equipment including a large circular hub plate, approximately 2m in diameter x 0.2m thick, with a series of "weight-reducing" cavities designed into each plate face as shown below, together with bearing housings/motor pedestals.

Shakespeare motor stools

shakespeare shaft supportshakespeare shaft hub plate

Form Tools

Shakespeare can supply all types of bespoke castings in a range of materials and sizes and weights from 5kg to 30,000kg. The batch of four castings, shown below are form tools, each weighing in at the relatively light weight of 660kg.

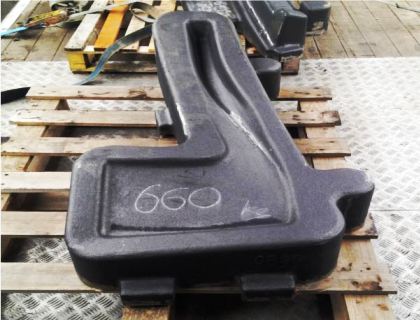

Shakespeare small casting5

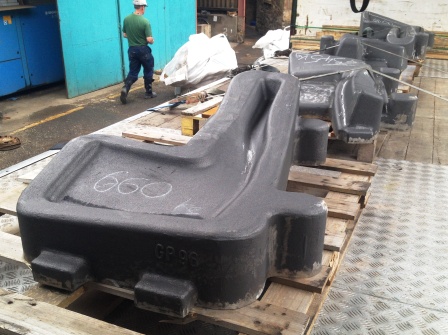

shakespeare bespoke castings

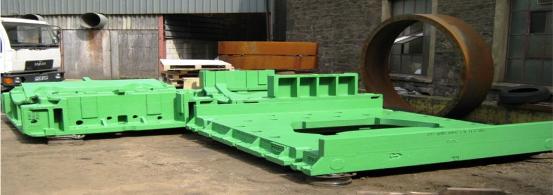

Cast frames and base plates are a viable alternate to fabrication specifically when cast using Shakespeare's poly pattern die tool process.

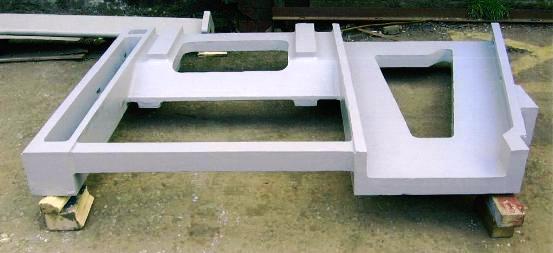

Shakespeare frame1

SF automotive die1a

Machine Baseplates

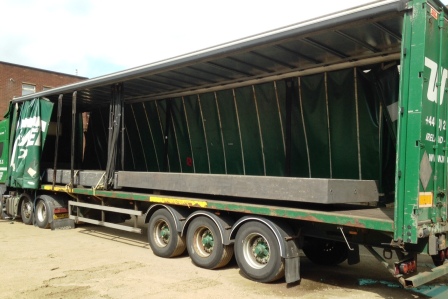

Shakespeare supply many machine tool Original Equipment Manufacturers (OEM's) with high integrity cast machine baseplates and beds/tables used in machine tools and CMM's. Some examples are shown below.

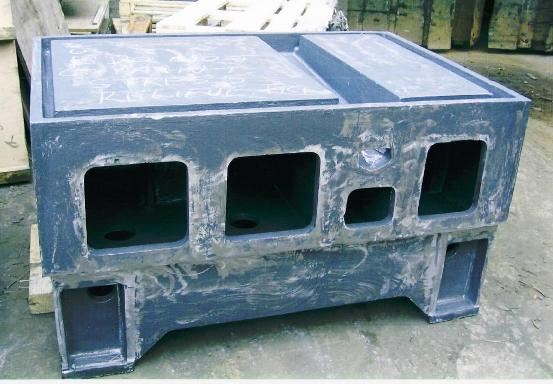

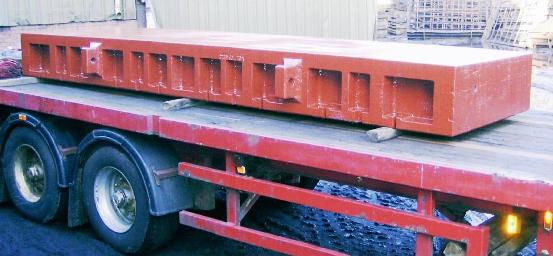

shakespeare machine bedplatesshakespeare machine tables

Shakespeare cast iron cmm bed lr

Split Housings

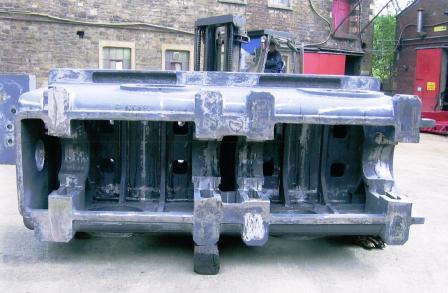

Shakespeare can cast very large and very heavy making them an ideal supplier for large split housings as found in compressors and mixing equipment.

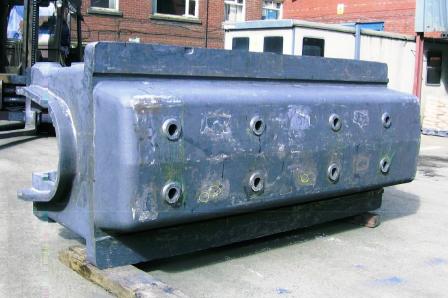

Shakespeare split housing1

Shakespeare split housing2
